Description:

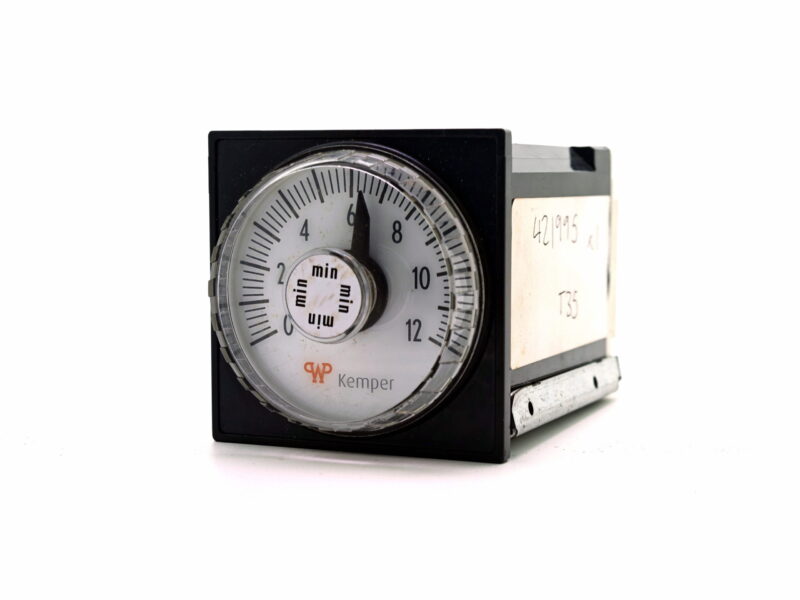

This is an industrial time-delay relay (timer relay) manufactured by Kemper (formerly branded Schleicher/Kemper), a German manufacturer of industrial relays and timers.
It’s a plug-in style relay housed in a black plastic body with a clear top cover (likely covering an indicator lamp or timing-adjustment dial), designed to mount on a relay socket/base via the pin array visible on the bottom.
Specs (from the label):
Type: DZE34-2SL-227, Rev. 01
Article No.: R2.024.2809.0
Supply voltage: AC 230 V, 50/60 Hz
Time delay setting: t = 12 minutes
Insulation standard: DIN EN 60664-1, 4 kV/3 (VDE 0110-1)
Contact ratings:
AC 230 V / 8 A (general)
AC-15: AC 250 V / 3 A (inductive switching, e.g., contactor coils)
DC-13: DC 250 V / 0.2 A (inductive DC switching)
Contact configuration: Two changeover (SPDT) output relay stages, per the wiring diagram, with terminal points A1/A2 (coil), 15/16, 27/28 (relay 1 contacts), and 31/32, 43/44 (relay 2 contacts)
Certification: CE marked
Serial No.: 002046462 0028 2518
Made in Germany
