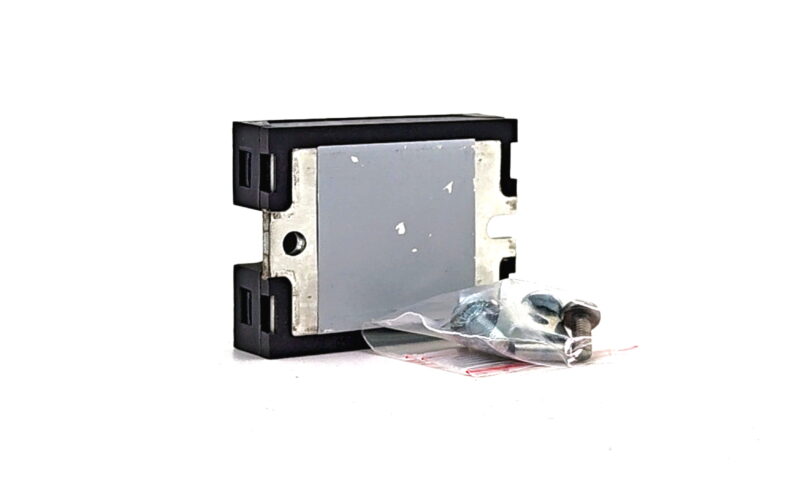

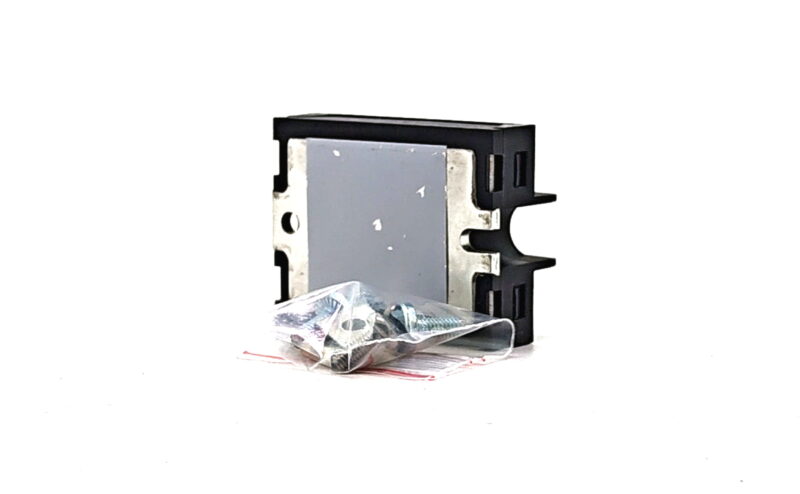

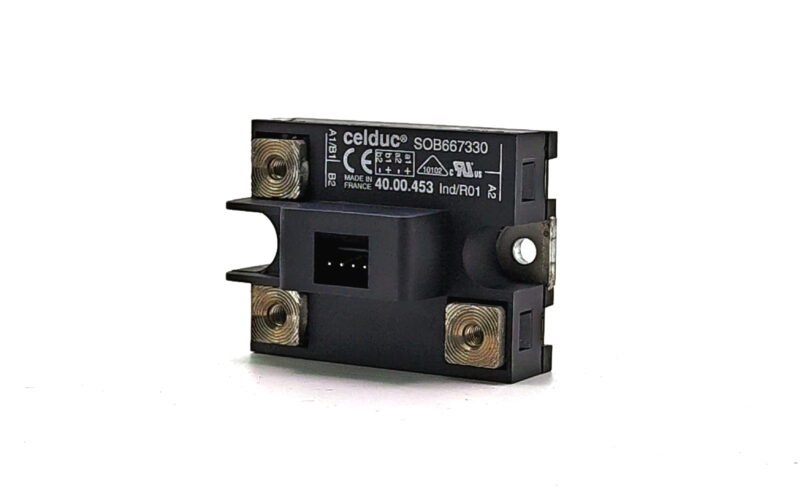

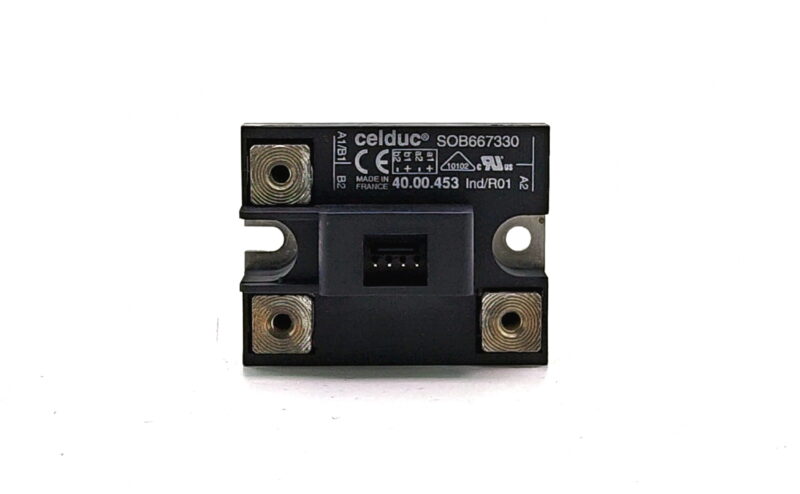

This is an industrial solid state relay (SSR), manufactured by Celduc in France, housed in a black molded case with a heatsink-style base plate. Unlike a standard single-pole SSR, this is a two-phase (dual-channel) unit — it contains two independent switching channels in one housing, controlling two power poles (labeled A1/B1 and B2 on the input side, with A2 as a shared reference) from a single control signal input. The unit has four main power terminals (large threaded lug/stud terminals for load wiring) and a control input connector at the center (the black connector block with pin contacts visible between the top and bottom terminal rows). Safety/compliance markings on the case include CE, UL/cUL, and a thermal warning triangle (icon 10102, referring to a heatsink/thermal caution).
Specs (from nameplate and cross-referenced documentation):
Manufacturer: Celduc Relais, Made in France
Model: SOB667330
Reference/Type: 40.00.453, Ind/R01
Terminal designations: A1/B1, B2, A2 (control/input reference), plus b1/b2/a1/a2 wiring diagram shown on label
Load voltage: 400 V AC
Load current: 65 A
Control voltage: 24 V DC
Certifications: CE, UL/cUL Listed
Construction: Two-pole/two-phase switching in a single hermetic SSR package, panel-mount with threaded power studs.
