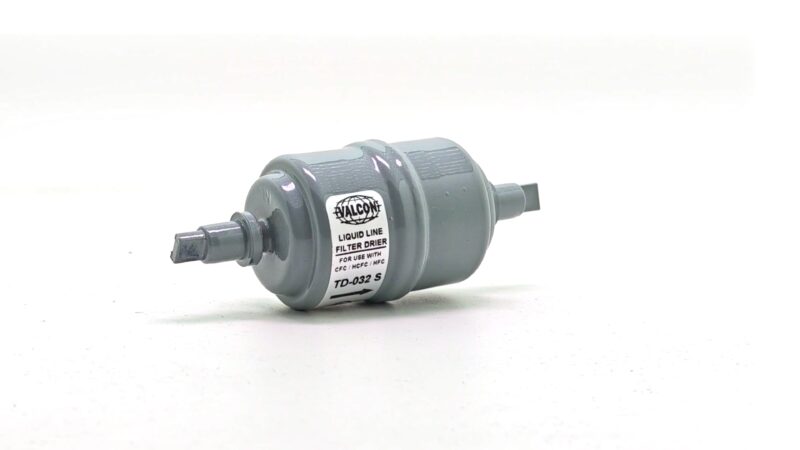

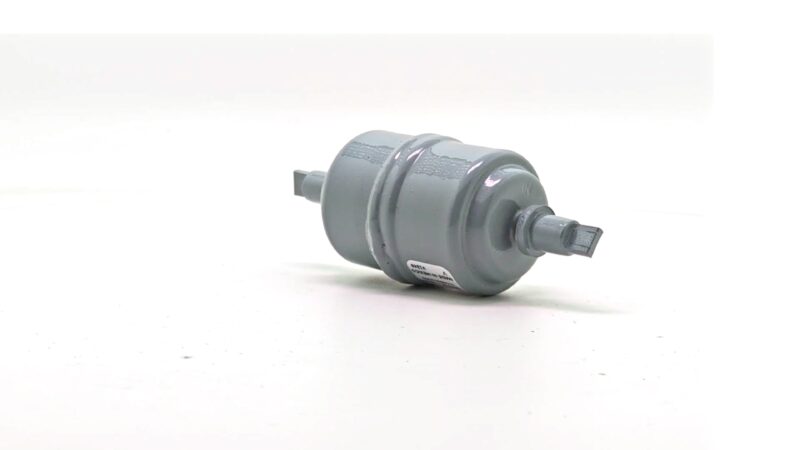

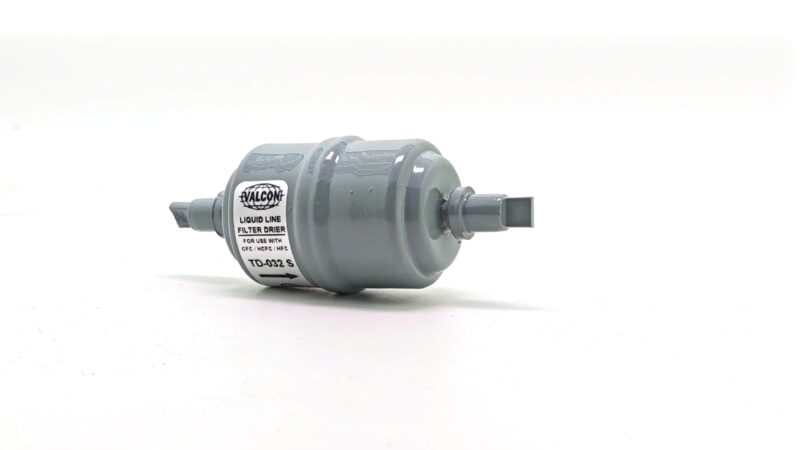

This is a hermetic (sealed/non-serviceable) liquid line filter drier — a small pressure vessel with a solder/flare connection at each end, containing a fixed bed of desiccant and filtration material. Refrigerant flows through the drier in one direction only (note the printed arrow on the label), passing through the desiccant core, which removes moisture, acids, and particulate contaminants from the refrigerant circuit. The grey epoxy-coated steel shell, UL/cUL “Listed” marking, and directional arrow are all standard features of this product family.
Specs (from nameplate):
Model: TD‑032 S
Type: Refrigerant Filter Drier
For use with: CFC / HCFC / HFC refrigerants
MWP (Max Working Pressure): 680 PSIG / 4,690 kPa
Certification: UL & cUL Listed
Manufacturer: Valcon-branded equivalent Emerson Climate Technologies
Origin: Made in Mexico
Flow direction: Unidirectional (arrow indicates correct installation orientation)
Comparable published specs for this drier size (032S body): ~3 cubic inches of desiccant, ~3.88″ length, roughly 1/4″ ODF (solder) connections in the standard version — capacity typically around 1.0–1.5 tons depending on refrigerant type (R‑12/R‑134a ≈ 1.0 ton, R‑22/R‑410A ≈ 1.5 tons, R‑404A/R‑507 ≈ 0.5 ton)
